Type:Agriculture Machinery & Equipment
-
Brand Name:
-
Place of Origin:China (Mainland)
-
Port:
-
Production Capacity:0 per
Product Details
- Model NO.: LM03
- Application Field: Agriculture, Livestock, Aquaculture
- Power Source: Gasoline
- Traction Type: Hanging
- Arbor Configuration: Horizontal Axis
- Color: Black
- Startt Mode: Recoil Start+AC Start
- Working Width: 360-550-850mm
- Assembly Dimensions: 1200*870*1190mm
- G.W/N.W: 53kg/48kg
- Working Depth: 330mm
- Transport Package: Standard Package
- Origin: Guangdong China
- Type: Micro-Farming Machine
- Farming Policy: Dry Cultivating Machinery
- Operation: Soil Preparation Machinery, Continuous Running Operation
- Drive Type: Gear Drive
- Certification: SGS, ECE, EU, CE
- Engine: 6.5HP/4.1kw/196cc
- Speed of Knife: 171rpm
- Tank Capacity (Fuel/Oil): 3.0L/0.6L
- Packing Size: 600*400*800mm
- Condition: New
- Trademark: Laurel
- Specification: CE, ISO, OEM
- HS Code: 8432809000
Basic Info
Product Description

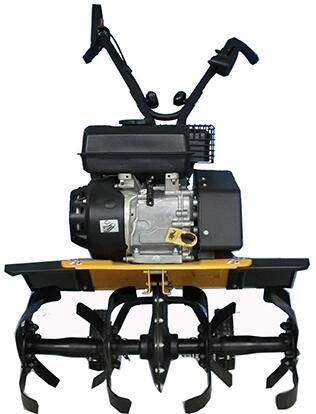

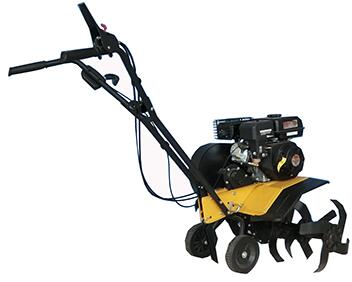

6.5HP Rotary Gasoline Tiller and Cultivator
Product Features:
1.Flexibly rotated handle (up and down, left and right) allows multi-direction operation
2.Tiller working width can be adjusted between 360, 550 and 850 according to actual situation
3.Special for mountain area, hills,dry land, vegetable garden, orchard and greenhouse
4.with forward and reverse gearshift

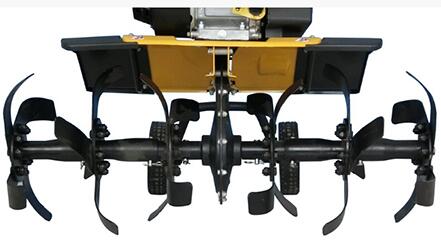

5.Weeding with knife wheel is available
Product Parameters:
Laurel powerful 6.5 HP Gasoline Tiller is loaded with impressive features and built to handle any tough job. Extremely easy to operate, it has a pair of strong tyres for driving forward and reverse so the tiller will not pull your arms out of their sockets like other non wheel driven machines.
♦To make it safe and easy to use, this tiller has features such as cover for moving rotors, to helps keep dirt, dust or rocks in the till path and off the operator. Control levers for convenient operation and unlockable wheels for easy transport.
♦This machine is perfectly suited for the home gardener or small farm and will cultivate a large area quickly, saving hours of back breaking digging.
The Advantage of POWER TILLER :
♦Quick height and side adjustment without tooling
♦Panel with integrated gas lever
♦2 IN1 clutch lever control
♦Bolted heat hardened steel blades with life time warranty
♦Bolted gearbox in oil bath
♦Adjustable depth skid by foot
♦Strong blade guard
♦Powerful 6.5HP engines
Product Features:
1.Flexibly rotated handle (up and down, left and right) allows multi-direction operation
2.Tiller working width can be adjusted between 360, 550 and 850 according to actual situation
3.Special for mountain area, hills,dry land, vegetable garden, orchard and greenhouse
4.with forward and reverse gearshift
5.Weeding with knife wheel is available
Product Parameters:
| Model | LM03 |
| Engine | 6.5HP/4.1KW/196CC |
| Startt Mode | Recoil Start+AC Start |
| Speed of Knife | 171rpm |
| Working Width/Depth | 360-550-850mm/330mm |
| Tank Capacity (fuel/oil) | 3.0L/0.6L |
| Assembly Dimensions | 1200*870*1190mm |
| Packing Size | 600*400*800mm |
| G.W/N.W | 53KG/48KG |
| 20ft/40ft/40HQ | 40' HQ FCL qty:318 pcs(L03-530/L03-532) |
| 40' HQ FCL qty: 240 pcs(L03-572) |
Laurel powerful 6.5 HP Gasoline Tiller is loaded with impressive features and built to handle any tough job. Extremely easy to operate, it has a pair of strong tyres for driving forward and reverse so the tiller will not pull your arms out of their sockets like other non wheel driven machines.
♦To make it safe and easy to use, this tiller has features such as cover for moving rotors, to helps keep dirt, dust or rocks in the till path and off the operator. Control levers for convenient operation and unlockable wheels for easy transport.
♦This machine is perfectly suited for the home gardener or small farm and will cultivate a large area quickly, saving hours of back breaking digging.
The Advantage of POWER TILLER :
♦Quick height and side adjustment without tooling
♦Panel with integrated gas lever
♦2 IN1 clutch lever control
♦Bolted heat hardened steel blades with life time warranty
♦Bolted gearbox in oil bath
♦Adjustable depth skid by foot
♦Strong blade guard
♦Powerful 6.5HP engines
