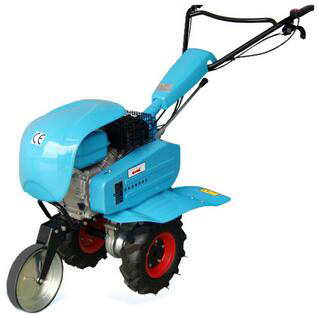

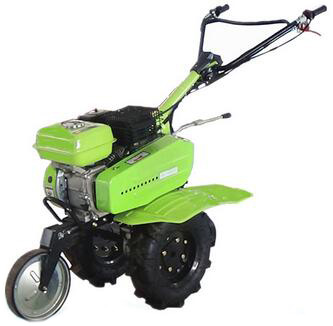

7HP Portable and High Quality Gasoline Power Mini Tiller
US $ /
Min. Order : 1 unit
Contact Supplier-
Type:Agriculture Machinery & Equipment
-
Brand Name:
-
Place of Origin:China (Mainland)
-
Port:
-
Production Capacity:0 per
Product Details
- Model NO.: LM4.1
- Application Field: Agriculture, Livestock, Aquaculture
- Power Source: Gasoline
- Traction Type: Hanging
- Arbor Configuration: Horizontal Axis
- Color: Blue
- Fuel Tank Capacity) L: 3.6
- Rated Rotary Speed(R/Min): 3600
- Tilling Scope (mm): 750
- Driving Mode: Belt Driving
- Revolutions Per Minute of Fast Gear: 112
- Transport Package: Standard Package
- Origin: Guangdong China
- Type: Micro-Farming Machine
- Farming Policy: Dry Cultivating Machinery
- Operation: Soil Preparation Machinery, Continuous Running Operation
- Drive Type: Gear Drive
- Certification: SGS, ECE, EU, CE
- Starting System: Recoil Start
- Oil Volume) L: 0.6
- Rated Output(Kw): 4
- Gear Shifting: Reverse, 0, 1
- Revolutions Per Minute of Slow Gear: 81
- Trademark: Laurel
- Specification: as the item size
- HS Code: 8432809000
Basic Info
Product Description
7HP Portable and High Quality Gasoline Power Mini Tiller
Detailed parameters
Suitable for the plains, mountains, hilly area of paddy field, dry and vegetable greenhouses, especially suitable for mountain terraces, Small piece of farmland and deep mud field operations. It can be completed to do farm works of rotary tillage, weeding, deep ploughing, ridging, ditching, sowing, fertilizing, spraying chamicals etc. equipped with reference supporting facilities.
The Main Features:
Micro tillage machine uses small diesel or gasoline engine as its power, has the advantages of light weight, small volume, simple structure etc. With the corresponding equipment it could not only pump, power generation and spray operations, but also tow the trailer for short-distance transport.
Our Main Products
Gasoline/diesel engine, gasoline/diesel generator, water pump, cultivator/tiller and related parts.
As a manufacturer, we can provide you good quality and low price products immediately instead of purchase from distributors.
Company Information
Guangzhou Laurel & Honesty Holdings is the most reputed high-tech electric equipment supplier in China. Integrated with R&D, Manufacture, Sales and Technical Service, we engages in professional design and supplies for various power equipment and instrument, such as diesel and gasoline engine and it's terminal products, Water Pump, tiller ,Diesel Generator , Gasoline Generator, Portable Variable-frequency Generator, Welding Generator, high pressure washer ,UPS (Uninterruptible Power System) and ATS (Automatic Transfer Switch). Our products have been to different countries and regions, We are located in the Southwest Industrial City of Guangzhou.
Our company integrates scientific research, production and sales. We own advanced scientific research equipment, advanced technology, production line and testing line, with a production capacity of 300,000 gasoline engines for general purposes and terminal products.
FAQ
Q1: What's your MOQ of this Item?
A1: 1 PCS
Q2:What's your payment term?
A2:L/C and T/T
Q3:Where is your Loading Port?
A3:Guangzhou,China Port or according to your requirements.
Q4:How about your quality control in your factory?
A4:Our company are always paying great attentions to the quality controlling from the beginning to the end.
Q5: Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings.
Q6: How do you make our business long-term and good relationship?
A6:1. We keep good quality and competitive price to ensure our customers' benefit;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter
where they come from.
Our Services
1.OEM is available,we accept your brand and designing of packing cartons.
2.We supply samples for your reference and checking.
3.Delivery time:at least 15 days after receiving your deposit.
4.Warranty:1 Year,except the easily damaged parts.
Detailed parameters
| Gasoline engine | Engine model | 7HP gasoline engine |
| Engine type | OHV25°Tilt,single cylinder, Forced air cooling, 4-stroke | |
| Bore×Stroke(mm) | 70×55 | |
| Displacement(ml) | 207 | |
| Compression | 8.5:1 | |
| Starting system | Recoil start | |
| Fuel tank capacity) L | 3.6 | |
| Oil volume) L | 0.6 | |
| Rated rotary speed(r/min) | 3600 | |
| Rated output(kw) | 4 | |
| Tilling parameter | Tilling scope (mm) | 750 |
| Tilling depth(mm) | ≥100 | |
| Gear Shifting | Reverse, 0, 1 | |
| Driving Mode | belt driving | |
| Fuel consumption (Kg/kw.h) | ≤35 | |
| Working performance( hm2/h.m) | ≥0.04 | |
| Revolutions per minute of revers gear | 61 | |
| Revolutions per minute of slow gear | 81 | |
| Revolutions per minute of fast gear | 112 | |
| Tiller details | Handle horizontal adjustment | angle 360° |
| Handle vertical adjustment | angle 180° | |
| Left Handle assessories | Clutch and stall switch | |
| Right handle assessories | Throttle | |
| Transimission type | 75 type | |
| Transimission material | Aluminum | |
| Axle Diameter | φ23 |
Suitable for the plains, mountains, hilly area of paddy field, dry and vegetable greenhouses, especially suitable for mountain terraces, Small piece of farmland and deep mud field operations. It can be completed to do farm works of rotary tillage, weeding, deep ploughing, ridging, ditching, sowing, fertilizing, spraying chamicals etc. equipped with reference supporting facilities.
The Main Features:
Micro tillage machine uses small diesel or gasoline engine as its power, has the advantages of light weight, small volume, simple structure etc. With the corresponding equipment it could not only pump, power generation and spray operations, but also tow the trailer for short-distance transport.
Our Main Products
Gasoline/diesel engine, gasoline/diesel generator, water pump, cultivator/tiller and related parts.
As a manufacturer, we can provide you good quality and low price products immediately instead of purchase from distributors.
Company Information
Guangzhou Laurel & Honesty Holdings is the most reputed high-tech electric equipment supplier in China. Integrated with R&D, Manufacture, Sales and Technical Service, we engages in professional design and supplies for various power equipment and instrument, such as diesel and gasoline engine and it's terminal products, Water Pump, tiller ,Diesel Generator , Gasoline Generator, Portable Variable-frequency Generator, Welding Generator, high pressure washer ,UPS (Uninterruptible Power System) and ATS (Automatic Transfer Switch). Our products have been to different countries and regions, We are located in the Southwest Industrial City of Guangzhou.
Our company integrates scientific research, production and sales. We own advanced scientific research equipment, advanced technology, production line and testing line, with a production capacity of 300,000 gasoline engines for general purposes and terminal products.
FAQ
Q1: What's your MOQ of this Item?
A1: 1 PCS
Q2:What's your payment term?
A2:L/C and T/T
Q3:Where is your Loading Port?
A3:Guangzhou,China Port or according to your requirements.
Q4:How about your quality control in your factory?
A4:Our company are always paying great attentions to the quality controlling from the beginning to the end.
Q5: Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings.
Q6: How do you make our business long-term and good relationship?
A6:1. We keep good quality and competitive price to ensure our customers' benefit;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter
where they come from.
Our Services
1.OEM is available,we accept your brand and designing of packing cartons.
2.We supply samples for your reference and checking.
3.Delivery time:at least 15 days after receiving your deposit.
4.Warranty:1 Year,except the easily damaged parts.
