Type:Agriculture Machinery & Equipment
-
Brand Name:
-
Place of Origin:China (Mainland)
-
Port:
-
Production Capacity:0 per 0
Product Details
Model NO.: 1BZ-2.0
Application Field: Agriculture
Power Source: Tractor
Traction Type: Traction
Arbor Configuration: Vertical Shaft
Color: Red
Trademark: SH
Specification: ISO
HS Code: 84321000
Type: Moldboard Plow
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Movable Operation
Drive Type: Gear Drive
Certification: SGS, ECE, EU, CE
Width: 2.0m
Transport Package: in Container
Origin: Shandong
Basic Info
Product Description
XCMG Agricultural Machinery produce the most popular tractors and their Implements in China.

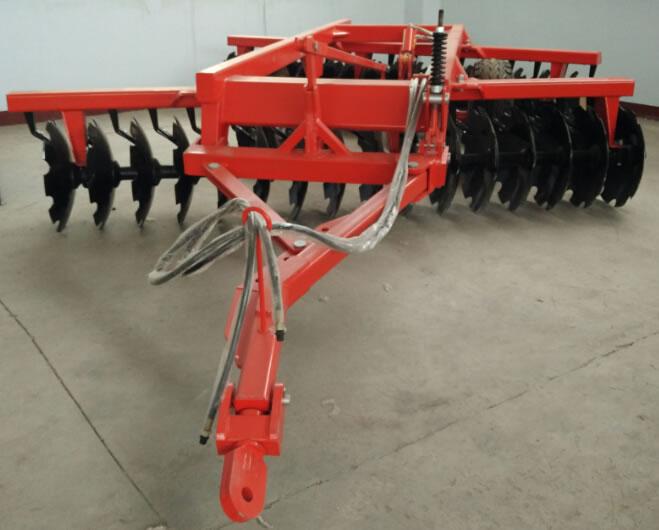

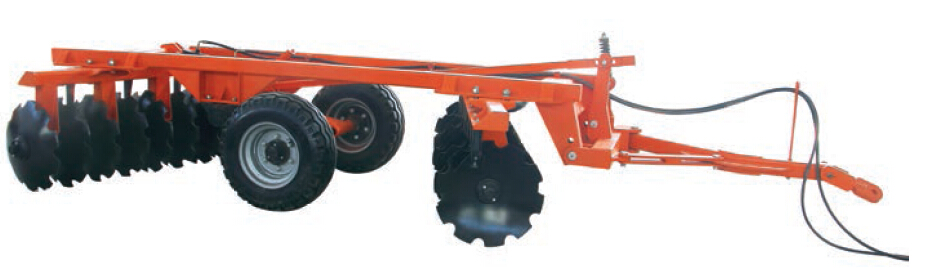

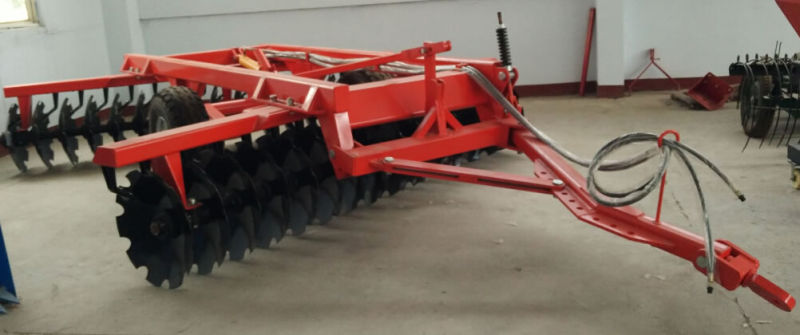

IBZ Series Heavy Disc harrow is the implement of the 80HP to 120HP tractor.
The disc harrow working width from 2.0m to 3.7m.
The specification as follows.
| item | unit | 1BZ-2.0 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
| working width | mm | 2000 | 2200 | 2500 | 3000 | 3400 |
| Working depth | mm | 200 | ||||
| No. of disc | pc | 18 | 20 | 24 | 28 | 32 |
| Dia. Of disc | mm | 660 | ||||
| weight | kg | 1150 | 1250 | 1350 | 1500 | 1650 |
| linkage | Trailed | |||||
| matched power | hp | 75-80 | 80-100 | 90-100 | 100-120 | |
