Product Details

Basic Info
• Model NO.: A7 Series
• Size: Large
• Layer: Single
• Door and Window: Sliding Door and Ajustable Window
• Parts: All Stainless Steel Bolts and Nuts
• Certification: CE
• Material: Polycarbonate and Aluminium Frame
• Transport Package: Flat Package Carton with Polythene Inside
• Origin: Changzhou, Jiangsu Province
• Type: Production Greenhouse
• Cover Material: Plastic Sheet
• Color: Mill Silver, Green Coated, Anodized
• Base: Aluminium Base or Galvanised Base
• Warranty: Free of 10year Guarantee
• Usage: Make Your Flower Grow Well
• Trademark: Growell
• Specification: 7′ Width 2063mm
• HS Code: 9406000090
Product Description

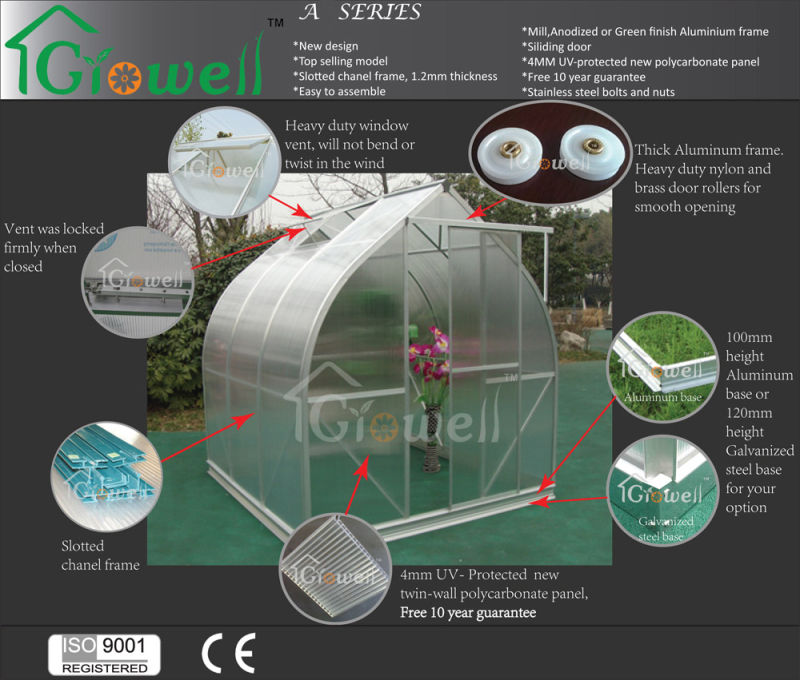

Unique Design---curved greenhouse A series






Features:
1. Panel: 4mm twin-wall UV-Protected new polycarbonate panels c/w free 10year guarantee
2. Frame: 1.2mm thickness strong aluminium frame with gutter system
3. Base: 1.5mm thickness aluminium base, 1.0mm thickness galvanised steel base
4. Door & window: Sliding door and adjustable window for excellent ventilation
5. All Stainless steel bolt & nut and all useful accessories included
6. Strong and passed weight test, accredited with ISO9001: 2008 quality management system and CE certificate
7. Good packing(one carton for frame and one carton for PC, color label in each carton)
8. With detailed assembly instruction manual, easily DIY step by step

Your options:
1. Color can be Mill silver/Anodized silver/Green;
2.120mm height Galvanized steel base or 100mm height aluminium base both for your choice;

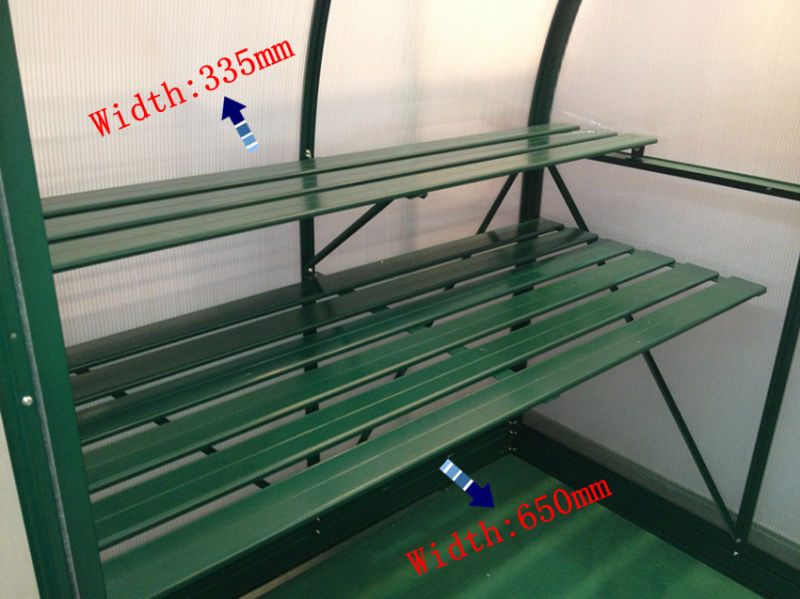

3. All accessories for your choice (like auto vent opener, solar thermostatic ventilator, staging, louver, etc)








MODEL		A705	A707	A710	A712	A714
SIZE(W*L*H)                                        All height exclude base		2063*1481*2183MM 6' 9" *4' 10" *7' 2"	2063*2197*2183MM 6' 9" *7' 2" *7' 2"	2063*2913*2183MM 6' 9" *9' 7" *7' 2"	2063*3629*2183MM 6' 9" *11' 11" *7' 2"	2063*4345*2183MM 6' 9" *14' 3" *7' 2"
PACKING SIZE(L*W*H)	HOUSE	1830*725*80MM 2140*250*95MM 2420*130*100MM	1830*725*95MM 2310*250*95MM 2420*160*100MM	1830*725*105MM 3020*250*95MM 2420*190*100MM	1830*725*120MM 3740*250*95MM 2420*220*100MM	1830*725*130MM 4460*250*95MM 2420*250*100MM
	ALU. BASE	2150*130*80MM	2286*130*80MM	3002*130*80MM	3718*130*80MM	4434*130*80MM
	Galvanized Steel Base	2210*150*80MM	2346*150*80MM	3062*150*80MM	3778*150*80MM	2302*150*110MM
VOLUME(M3/SET)	House with Alu base	0.187 (0.106+0.051+0.008+0.022)	0.215 (0.126+0.055+0.01+0.024)	0.253 (0.139+0.072+0.011+0.031)	0.301 (0.159+0.089+0.014+0.039)	0.339 (0.172+0.106+0.015+0.046)
	House with G. steel base	0.192 (0.106+0.051+0.008+0.027)	0.219 (0.126+0.055+0.01+0.028)	0.259 (0.139+0.072+0.011+0.037)	0.307 (0.159+0.089+0.014+0.045)	0.331 (0.172+0.106+0.015+0.038)
NET WEIGHT(KG/PC)	HOUSE	32.30(20.14+12.16)	38.57(23.53+15.04)	45.55(27.63+17.92)	53.21(32.49+20.72)	59.46(35.86+23.60)
	ALU. BASE	5.83	6.93	8.03	9.28	10.38
	Galvanized Steel Base	11.64	13.78	15.92	18.39	20.71
CONTAINER LOAD(HOUSE AND BASE)	20'	145 SET	128 SET	108 SET	91 SET	82 SET
	40'	290 SET	256 SET	216 SET	182 SET	165 SET
	40' HQ	338 SET	296 SET	250 SET	211 SET	192 SET



Why choose us???

As Greenhouse is DIY products, not allowed any defects exist.

For polycarbonate panel.
Our principle make flowers grow well.
So we use all virgin material twin polycarbonate. Free of 10year guarantee. It has the characteristics of high light transmission, good effect of heat insulation, energy save, safe and convenient structure high impact strength, also it can simply installation.

For engineered aluminium frame.
Our principle is to use the strong profiles to make the greenhouse more durable.
So we use 1.0mm/1.2mm/1.3mm thickness strong aluminium frame with gutter system, color can be Mill silver/Anodized silver/Green. It depends on your choice

For quality. We have passed the factory audit from SGS, accredited with ISO9001: 2008 quality management system and all our products come with CE certificate. Most of our products are exported to European and America.


We are passionate about greenhouse!
If you have any requirement, Welcome always!
