LCD5802S 5802 40CH Raceband 5.8G 7 Inch Diversity Receiver Monitor with Build-in Battery for RC Model Racer Drone Quadcopter (Plug Type: US Plug)
US $ 70 / Piece
Min. Order : 50 unit
Contact Supplier-
Type:Electronic Toys
-
Brand Name:LST
-
Place of Origin:China (Mainland)
-
Port:Shenzhen
-
Production Capacity:500 Piece/Pieces per Day
Product Details
Description:
Brand Name:DMKR

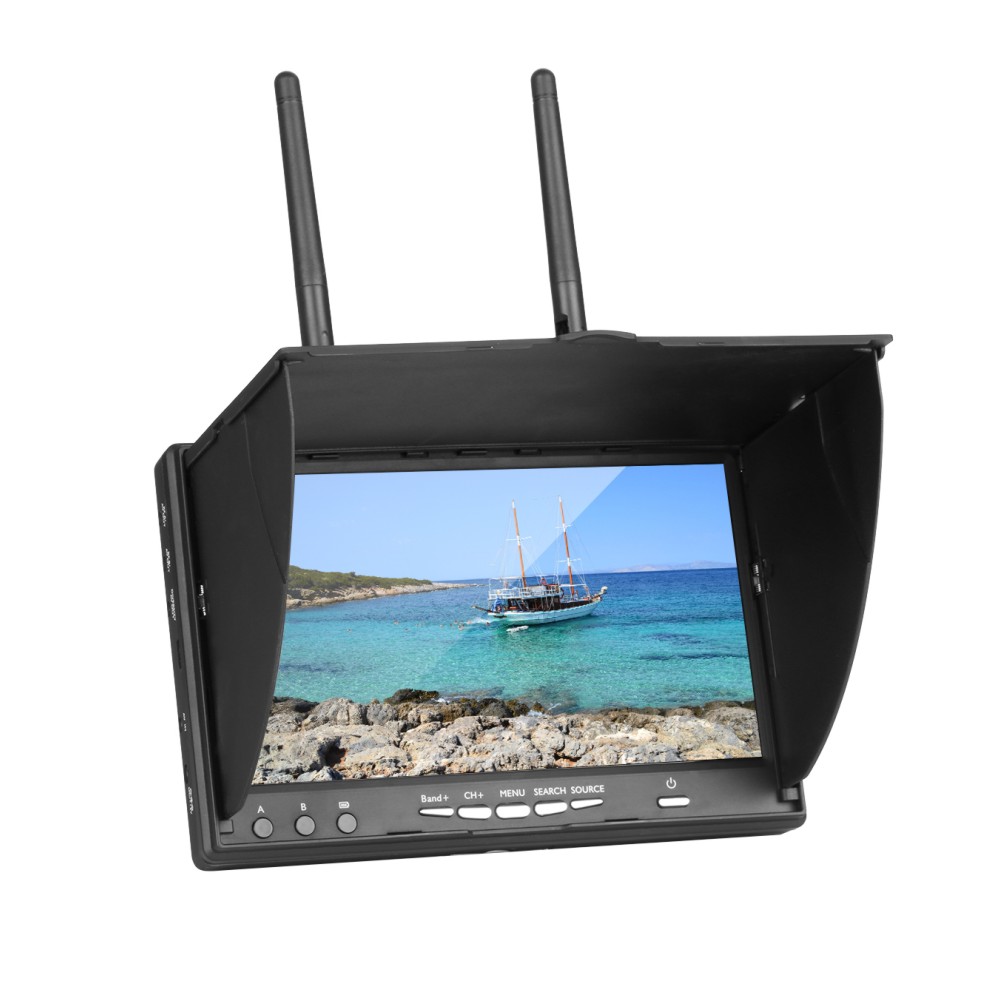

Item Name: LCD5802S Monitor
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery:2000mAH/7.4V
Work status OSD display:RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Sensitivity: -90dBm
Screen size:7”
Screen type:TFT LCD Screen/long life, LED backlight
Brightness:600cd/m2
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage:DC 7~16V
Power Consumption:max 650 mA @12V
Battery charging current:850mA @12V ( max )
Working temperature:-10℃~+ 65 ℃
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)

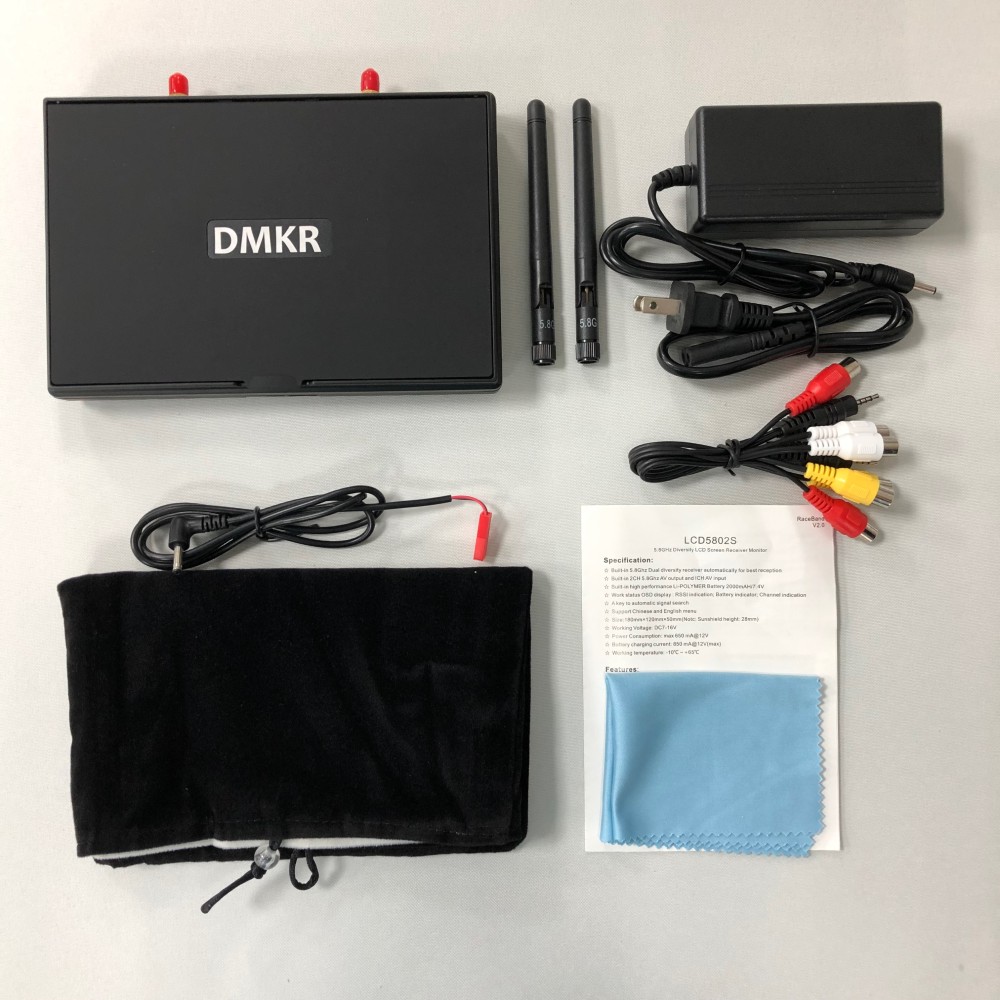

Package Included:
1 x 7" LCD Screen Receiver Monitor with built in Rechargable Battery
2 x 5.8G Antenna
2 x AV Cable
1 x Charger
