Product Details

Overview

Quick Details

• Place of Origin:

• Zhejiang, China (Mainland)

• Brand Name:

• Sentek

• Model Number:

• SD218

• Product name:

• Smart Household Fire Alarm Wired Photoelectric Smoke Detector

• Certificate:

• EN14604,CE, ROHS

• Weight:

• 130g with base (9V battery included)

• Usage:

• Detect Smoke

• Color:

• White

• Warranty:

• 10 Years

• Standby Current:

• 8uA

• Alarm Current:

• 15mA

• Temperature Range:

• 0°C to 50°C

• Alarm Sound Level:

• 85db/3m

Supply Ability

• Supply Ability:

• 15000000 Piece/Pieces per Month Smart Household Fire Alarm Wired Photoelectric Smoke Detector

Packaging & Delivery

• Packaging Details

• Standard packed.100pcs/carton or depending on request

• Port

• Ningbo

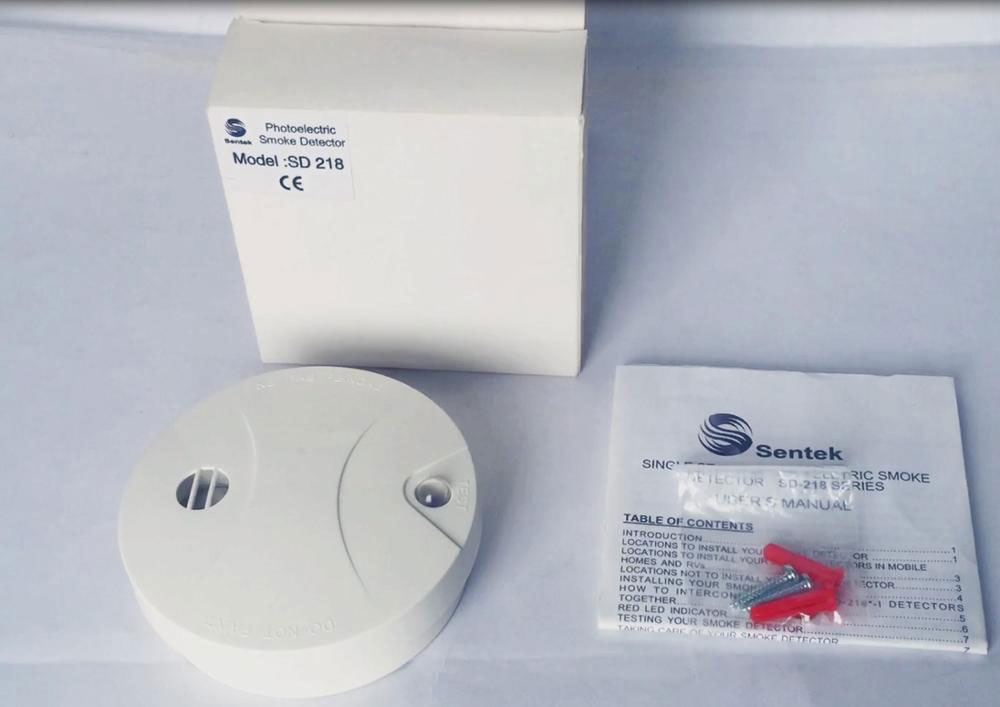

Smart Household Fire Alarm Wired Photoelectric Smoke Detector

SD218 series photoelectric smoke detectors are designed in accordance with UL217,EN14604 and manufactured under the best quanlity control.The SD218 series alarm are adopted the reliability UL-certificated infrared components.The SD218H series alarm also act as a smoke sensor and/or a 135 °F heat detector at the same lacation.



Product Description

Specification:

Smoke Sensitivity	0.08---0.14dB/m
Battery Availability	18months(Carbon Zinc); 3 years(Alkaline); 10 years(Lithium);
Standby Current	8uA
Alarm  Current	15mA
Temperature Range	0°C to 50°C
Humidity	0 to 95% RH, no condensation or icing
Alarm Sound Level	85 db/3m
Dimensions:	102mm (dia) x 35mm (ht) with base
Weight:	130g with base (9V battery included)

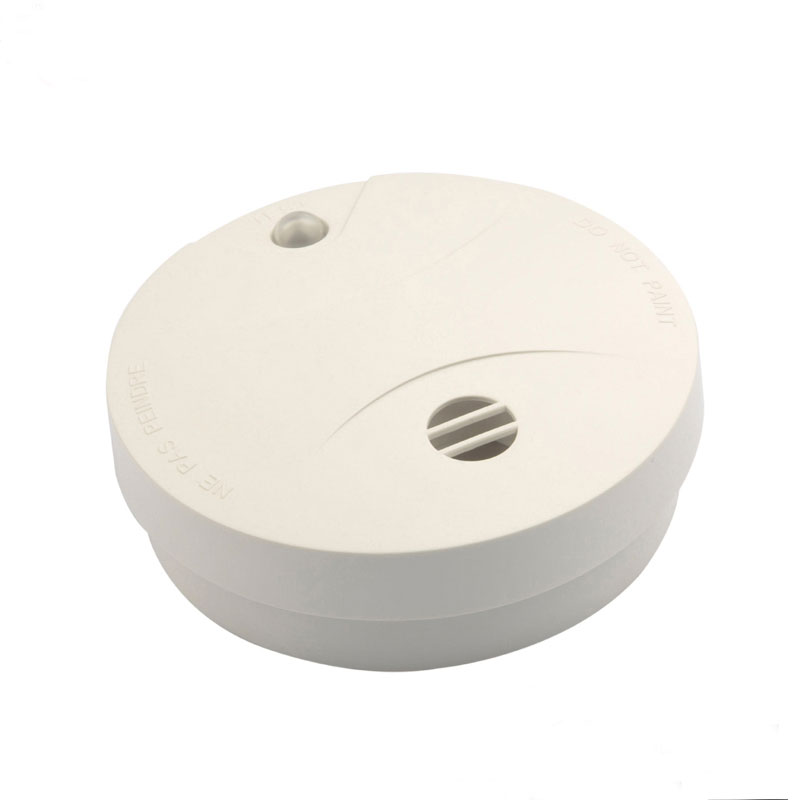

 Smart Household Fire Alarm Wired Photoelectric Smoke Detector



 Product Features:

Part No.	Description
SD218	Photoelectric Smoke Detector(Tested by EN14604,2005 Version)
SD218-I	Smoke Detector,Interconnection Function(Tested by EN14604,2005 Version)
SD218-A-I	Photoelectric Smoke Detector,Interconnection Function,AC110/230V
SD218-A-B-I	Photoelectric Smoke Detector,Interconnection Function,AC110/230V with battery backup
SD218H	Smoke and Heat Detector
SD218H-I	Smoke and Heat Detector,Interconnection Function
SD218H-A-B-I	Photoelectric Smoke and Heat Detector,Interconnection Function,AC110/230V with battery backup

* Photoelectric sensing technology
* Low-sensitivity warning
* Low-battery warning
* Battery case at the back of the detector for easy removal of a bettery
* SMD circuit board design-satisfactory quality and reliability guaranteed
* Test button verifies battery and alarm operation
* Sounding a loud alarm signal exceeding 85db in alarm mode
* Easy installation and maintenance
* Ten-year warranty
