Product Details

Product Description

Standard

The product is manufactured according to the standard of QB, and the same time is also manufactured according

to the standard of IEC, English, Germany and America.




Applications

 The products can keep a good physical and mechanical properties and electrical properties when temperature at

200℃ or below. It has good performance of solvent resistance, corrosive resistance, high temperature resistance.

 It can be used in the chemical, petrol,electric generation and metallurgical enterprise and under high or low

temperature and other bad environment.




Operating characteristics

1. Rated power-frequency voltage Uo/U: 0.6/1kV.

2. Allowable working temperature for a long period:

    PVC sheath: 70℃,90℃,105℃

    Silicone rubble sheath:≤180℃

    Fluoroplastics sheath:≤200℃

3. The ambient temperature should not be lower than -60℃ for fixed cable laying and not be lower than -20℃

for temporary cable laying.

4. Recommended allowable bending radius:

Should not be smaller than 12 times of the cable diameter for Fluoroplastics shesthes cables and steel-armored

cables.



Type and designation

Series F: Fluoroplastics insulated     series G:silicon rubber insulated series




FF,FFR	NH-FF, NH-FFR	FF25, FFR25	NH-FF25, NH-FFR25	FV, FVR	NH-FV, NH-FVR	FV22, FVR22
NH-FV22, NH-FVR22	FG, FGR	NH-FG, NH-FGR	FG24, FGR24	NH-FG24, NH-FGR24

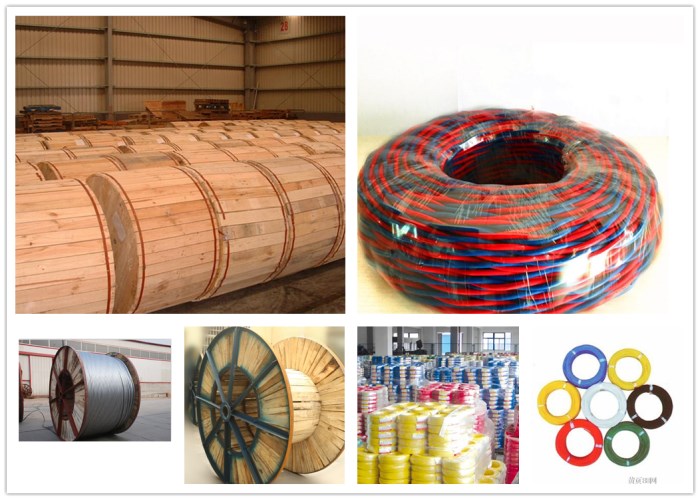

Packaging & Shipping

In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.
