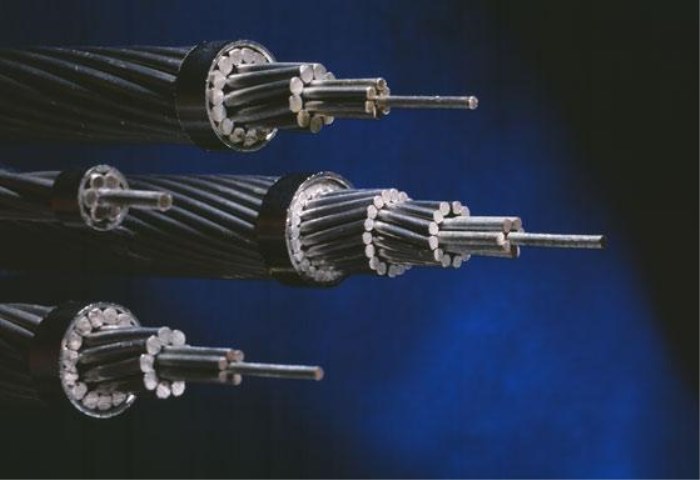

ABC cable Overhead AAAC (All Aluminium Alloy Conductor)
US $ 0.16 / Meter
Min. Order : 1000 unit
Contact Supplier-
Type:Wires, Cables & Cable Assemblies
-
Brand Name:
-
Place of Origin:China (Mainland)
-
Port:Qingdao/Ningbo/Shanghai
-
Production Capacity:200000 Meter/Meters per 0
Product Details
Product Description
AAAC 's Applications
AAAC is used as bare overhead conductor for primary and secondary distribution.Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio;Affords better sag characteristics.Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.
AAAC's Standards
AAAC(All Aluminum Alloy Conductors) meet or exceed the following standards:
IEC61089, BS3242, DIN48201, ASTM B399, BS EN50183, GB/T 1179-2008
Number | Specification | Name | Cross-sectional area | Standard |
1 | LJ | Aluminum Stranded Wire | 16-800 | GB1179 |
2 | LGJ | Aluminum Conductor Steel-reinforced | 10/2-800/100 | |
3 | LGJF | Anticorrosive Aluminum conductor steel-reinforced | 10/2-800/100 | |
4 | JL | Aluminum Stranded Wire | 10-800 | |
5 | JLHA2, JLHA1 | Aluminum alloy Stranded Wire | 16-800 | |
6 | JL/G1A,JL/G1B,JL/G2B, JL/G3A | Aluminum Conductor Steel-reinforced | 16-800 | |
7 | JL/G1AF,JL/G2AF,JL/G3AF | Anticorrosive Aluminum conductor steel-reinforced | 16-800 | |
8 | JLHA2/G1A,JLHA2/G1B, JLHA2/G3A | Aluminum alloy conductor steel-reinforced | 16-800 | |
9 | JLHA1/G1A,JLHA1/G1B, JLHA1/G3A | Aluminum alloy conductor steel-reinforced | 16-800 | |
10 | JL/LHA2,JL/LHA1 | Aluminum conductor Aluminum alloy reinforced | 16-800 | |
11 | JL/LB1A | Aluminum conductor Aluminum coated steel-reinforced | 16-800 | |
12 | JLHA2/LB1A,JLHA1/LB1A | Aluminum conductor Aluminum coated steel-reinforced | 16-800 | |
13 | JG1A.JG1B,JG2A,JG3A | Steel stranded wire | 4-63 | |
14 | JLB1A,JLB1B,JLB2 | Aluminum coated steel stranded wire | 4-200 |
Packaging & Shipping

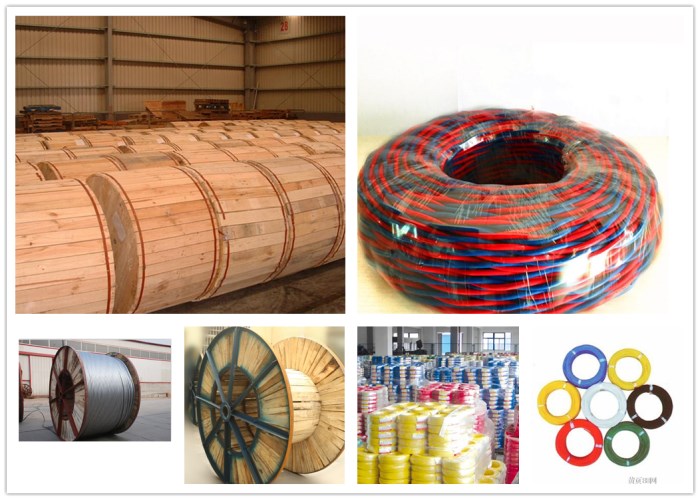

In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.
